Dual-Mode 4K Video Transmission up to 400m
SYNCO XVision 4K delivers 4K/30fps wireless video transmission up to 400 meters. It features two transmission modes to meet different production needs: High Definition Mode and Smooth Mode.
SYNCO XVision 4K Wireless Video Transmission System, 400m Range, 80ms Low Latency, Auto Channel Selection, UVC Streaming, 9 Groups
$149.00
- Description
- Specifications
- What's in the Box?
Description

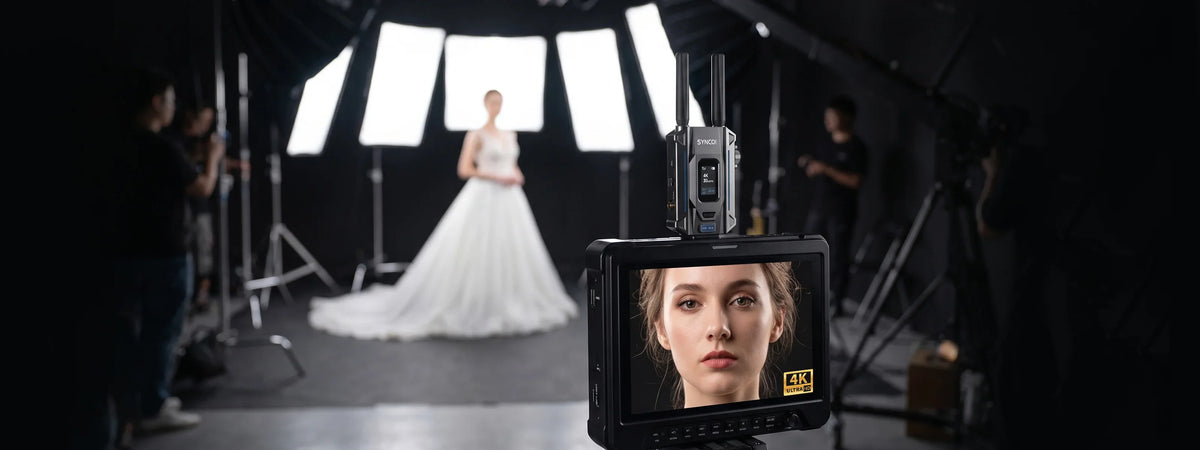

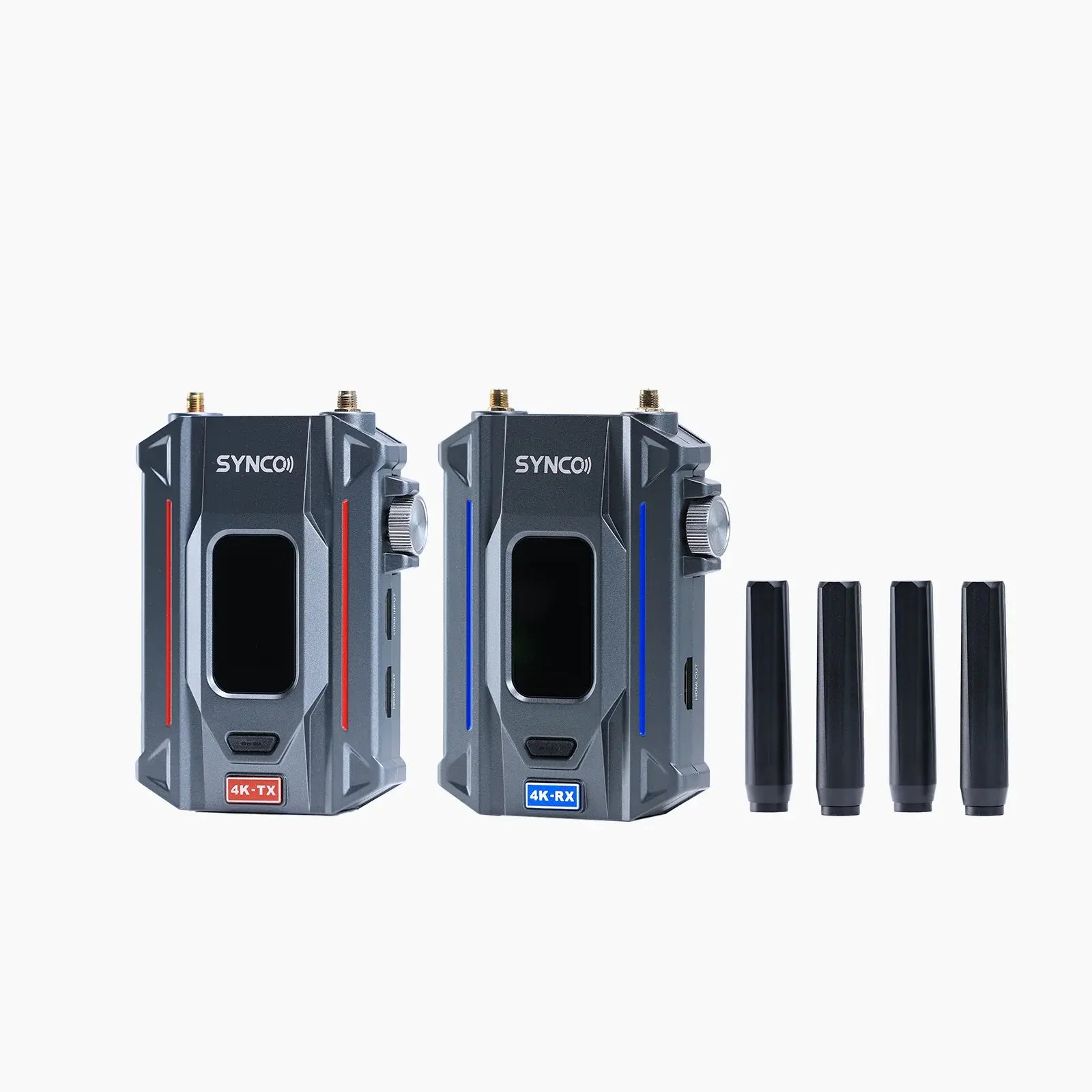

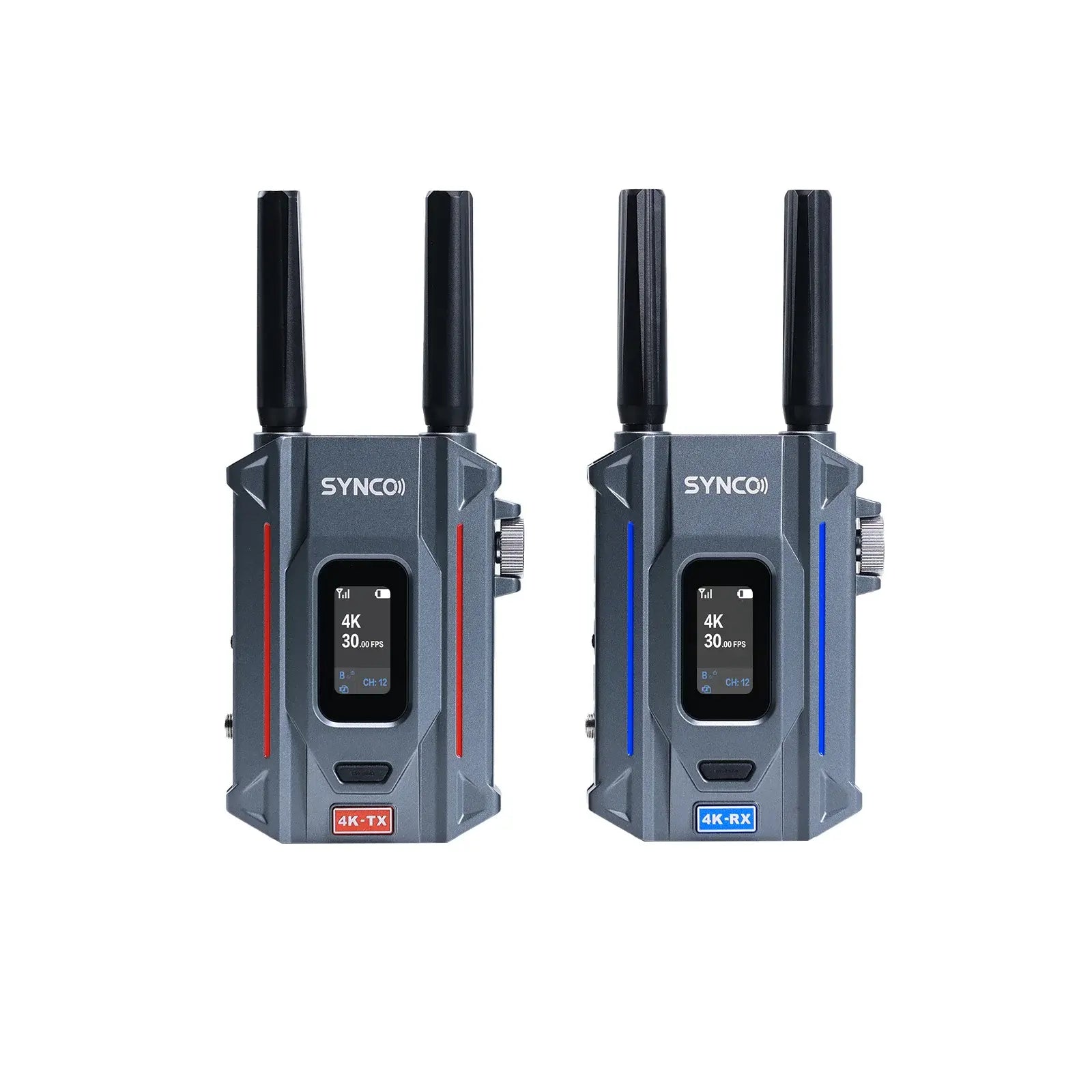

SYNCO XVision 4K wireless video transmission system consists of one transmitter and one receiver. It transmits 4K/30fps video up to 400 meters with 80ms ultra-low latency, ensuring every frame is sharp and every sound is clearly captured.
Designed for multi-camera productions, XVision 4K supports 1-to-4 connection and nine independent groups. Add three separately sold receivers to expand monitoring across up to five displays simultaneously. With Group Lock, up to nine 1-to-4 systems can run simultaneously without interference.
Its dual transmission modes, automatic channel selection, UVC support, and three power options adapt effortlessly to diverse workflows. From filmmaking and live events to studio production and outdoor shoots, it delivers stable, flexible, and efficient wireless video transmission for demanding shooting environments.
Specifications
Transmitter
| Transmission Range | 400m |
| Interface | DC IN: 2.0mm Core Socket Video Input: Up to 4K@30fps Type-C: USB 2.0 OTG Antenna: SMA Male |
| Power Supply | NP-F battery: 6.8-8.4V DC input: 6-16V USB-C: 5V |
| Power Consumption |
7W |
| Weight | 242g |
| Dimension | 119*86*30.7m |
| Frequency Band |
5.150-5.250GHz
5.250-5.350GHz 5.470-5.725GHz 5.725-5.850GHz |
| Transmit Power | <20dBm |
| Latency | 80ms |
| Bandwidth | 20MHz |
| Temperature Range |
-10°C - +45°C (Operating Temperature) -40°C - +60°C (Storage Temperature) |
Receiver
| Transmission Range | 400m |
| Interface | DC IN: 2.0mm Core Socket Video Output: Up to 4K@30fps Type-C: USB 2.0 OTG Antenna: SMA Male |
| Power Supply | NP-F battery: 6.8-8.4V DC input: 6-16V USB-C: 5V |
| Power Consumption |
6.5W |
| Weight | 241g |
| Dimension | 119*86*30.7m |
| Frequency Band |
5.150-5.250GHz
5.250-5.350GHz 5.470-5.725GHz 5.725-5.850GHz |
| RX sensitivity | 85dBn |
| Latency | 80ms |
| Bandwidth | 20MHz |
| Temperature Range |
-10°C - +45°C (Operating Temperature) -40°C - +60°C (Storage Temperature) |
UVC
| UVC Output Format | Output Format | Input Format |
| 1080p@60 | 720p@50/59.94/60 1080i@50/60 1080p@24 1080p@50/59.94/60 4K@24/25/30 |
720p@50/60 1080p@60 1080p@24 1080p@60 4K@30 |
What's in the Box?
Free Shipping for Order > US$39.99
3-7 Day Delivery

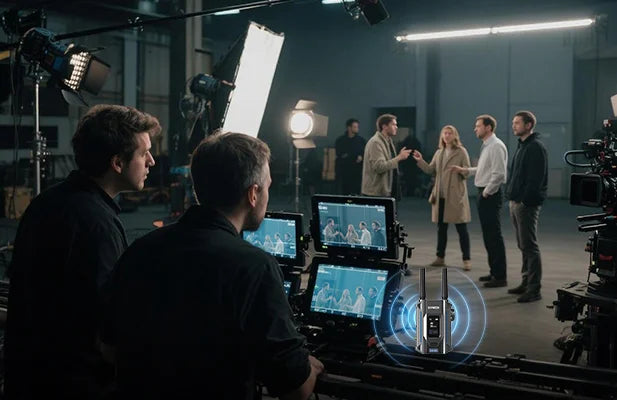

High Definition Transmission Mode (Up to 200m)
Optimized for image quality, High Definition Mode maintains clear visuals at distances up to 200 meters. It is ideal for studio productions, indoor interviews, and product filming.

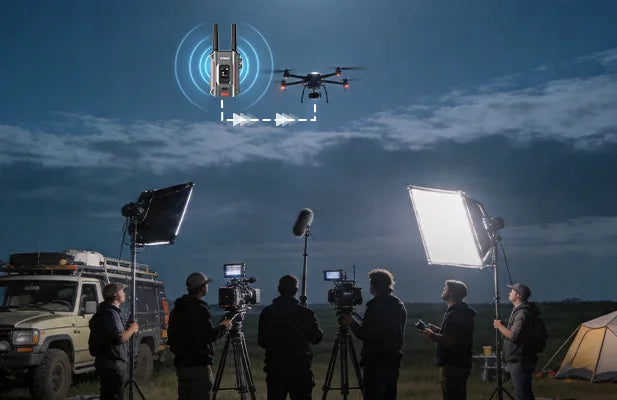

Smooth Transmission Mode (Up to 400m)
Switch to Smooth Mode for extended range. It enables reliable 4K wireless transmission up to 400 meters, perfect for outdoor productions, live concerts, and drone shooting.
Ultra-Low 80ms Latency for Real-Time Monitoring
Ultra-low 80ms latency minimizes response delays during fast-paced productions, allowing operators to make quick adjustments with confidence. Whether used with drones, cranes, Steadicams, or robotic rigs, XVision 4K keeps every movement smooth and synchronized.

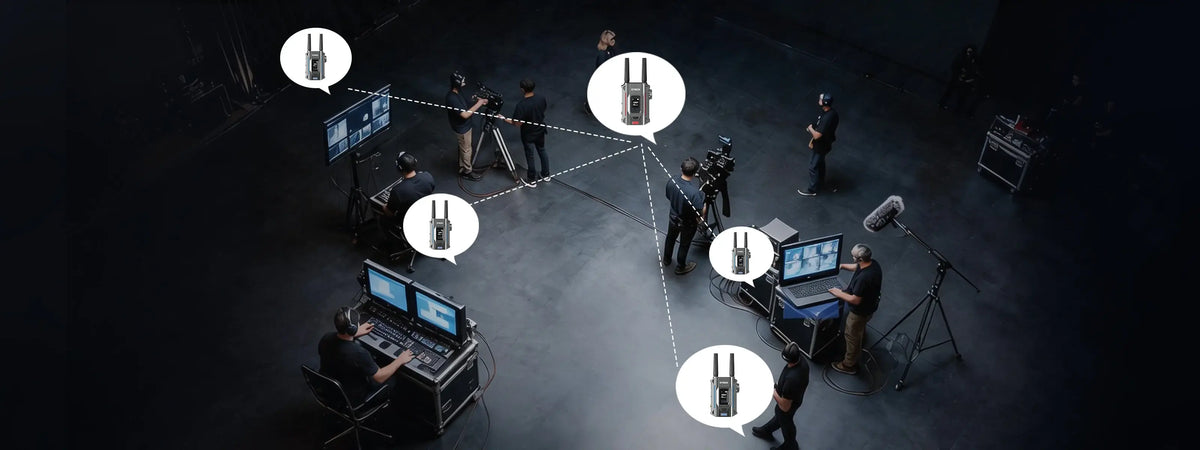

Multi-Screen Monitoring for Better Collaboration
The 1-to-4 connection supports up to five displays, allowing directors, camera operators, and technical crew to view the same frame in real time. By keeping the entire team aligned on the same feed, it helps reduce unnecessary adjustments and rework to improve on-set efficiency.
*The standard XVision 4K kit includes 1 TX and 1 RX. Additional RX units are sold separately for multi-display monitoring.
Auto Channel Selection for Fast Setup and Stable Transmission
The Auto Mode of XVision 4K eliminates manual channel testing and reduces interference in crowded RF environments. It automatically scans all channels, detects occupied frequencies, and selects the best available channel for a fast, stable connection.

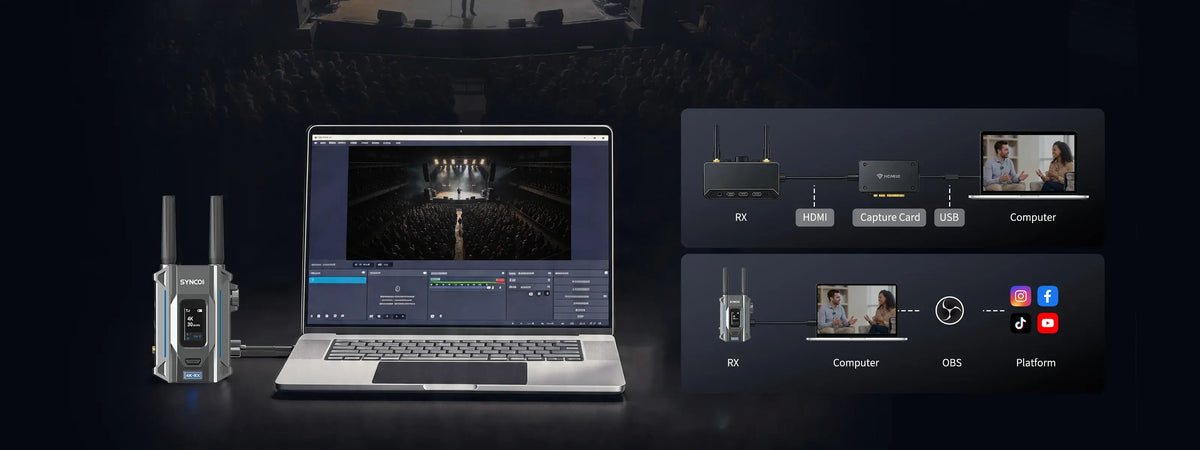

UVC for Plug-and-Play Live Streaming
Supporting USB Video Class (UVC), the XVision 4K receiver converts the wireless video signal into a USB video source for direct streaming on your computer. Just connect the RX to your computer and start streaming, no capture card, no drivers, no hassle.

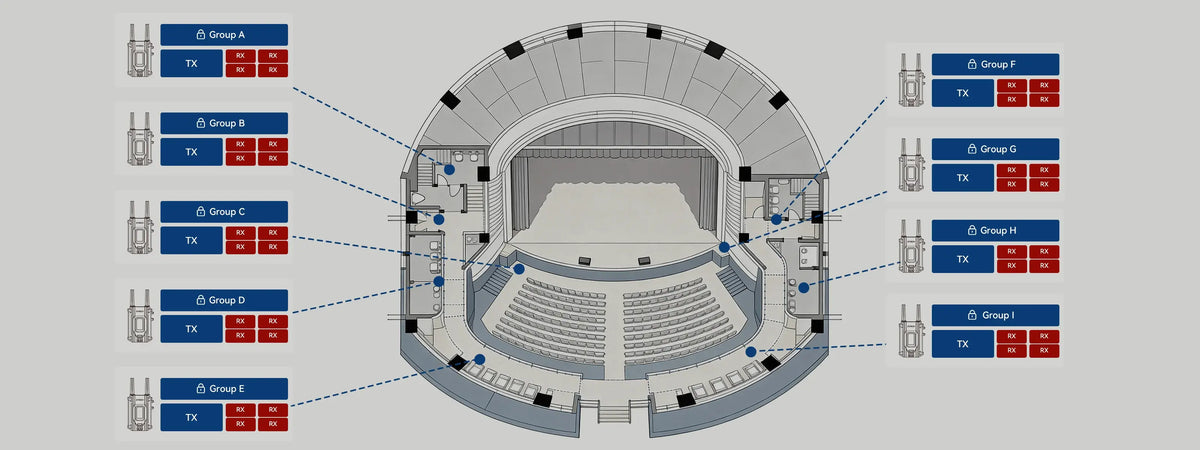

9 Groups, Zero Chaos on Multi-Camera Production
SYNCO XVision 4K supports up to 9 independent groups, with each group connecting 1 TX to up to 4 RX units. Assign TX and RX to the same group, and they pair automatically. Enabling Group Lock on the TX also locks its paired RX units, preventing accidental group switching and keeping multi-camera productions organized.

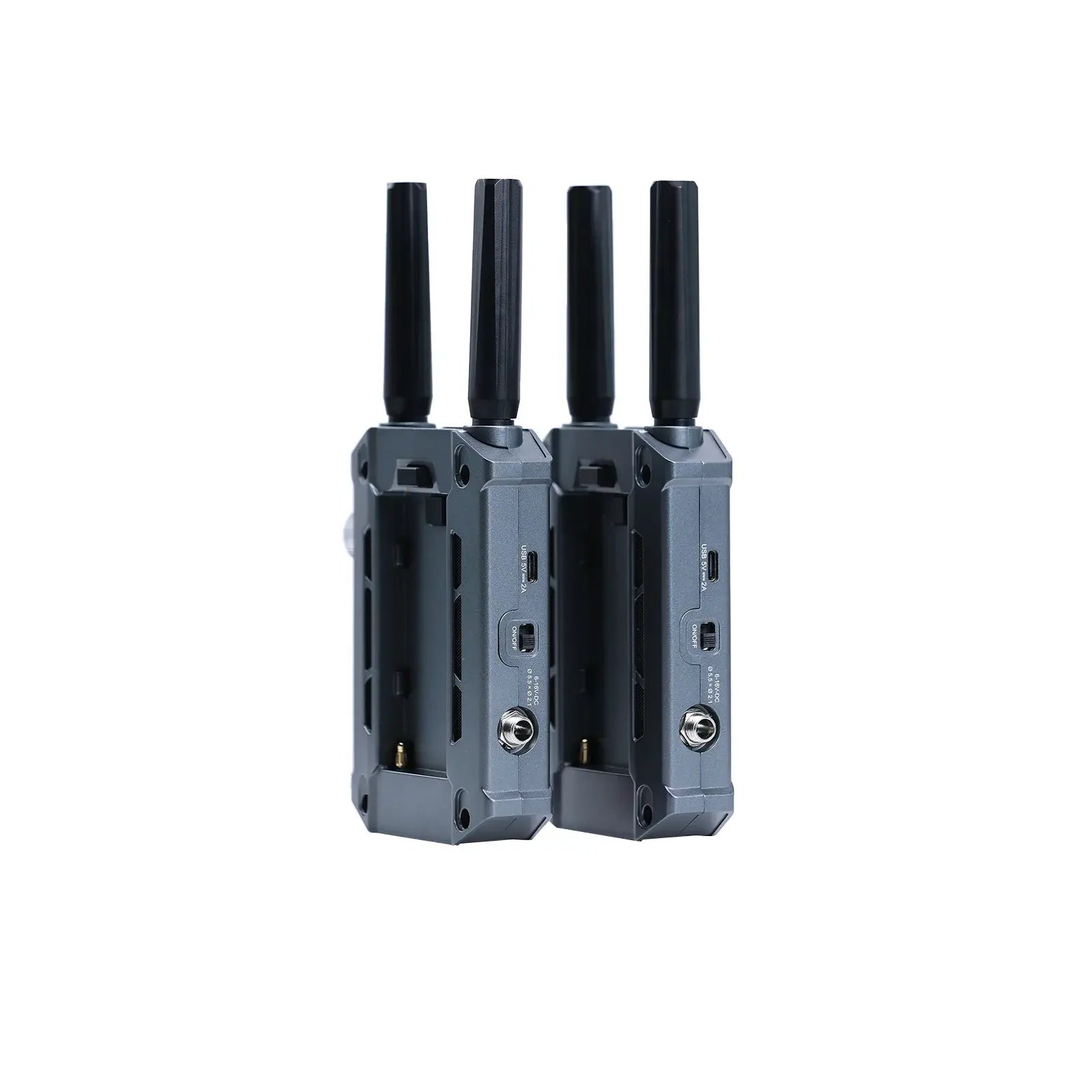

Flexible Power Options for Any Shooting Environment
SYNCO XVision 4K wireless video transmission system offers three power options: NP-F batteries, USB-C, and DC input. Whether on location or in the studio, you can choose a power source that fits your setup.

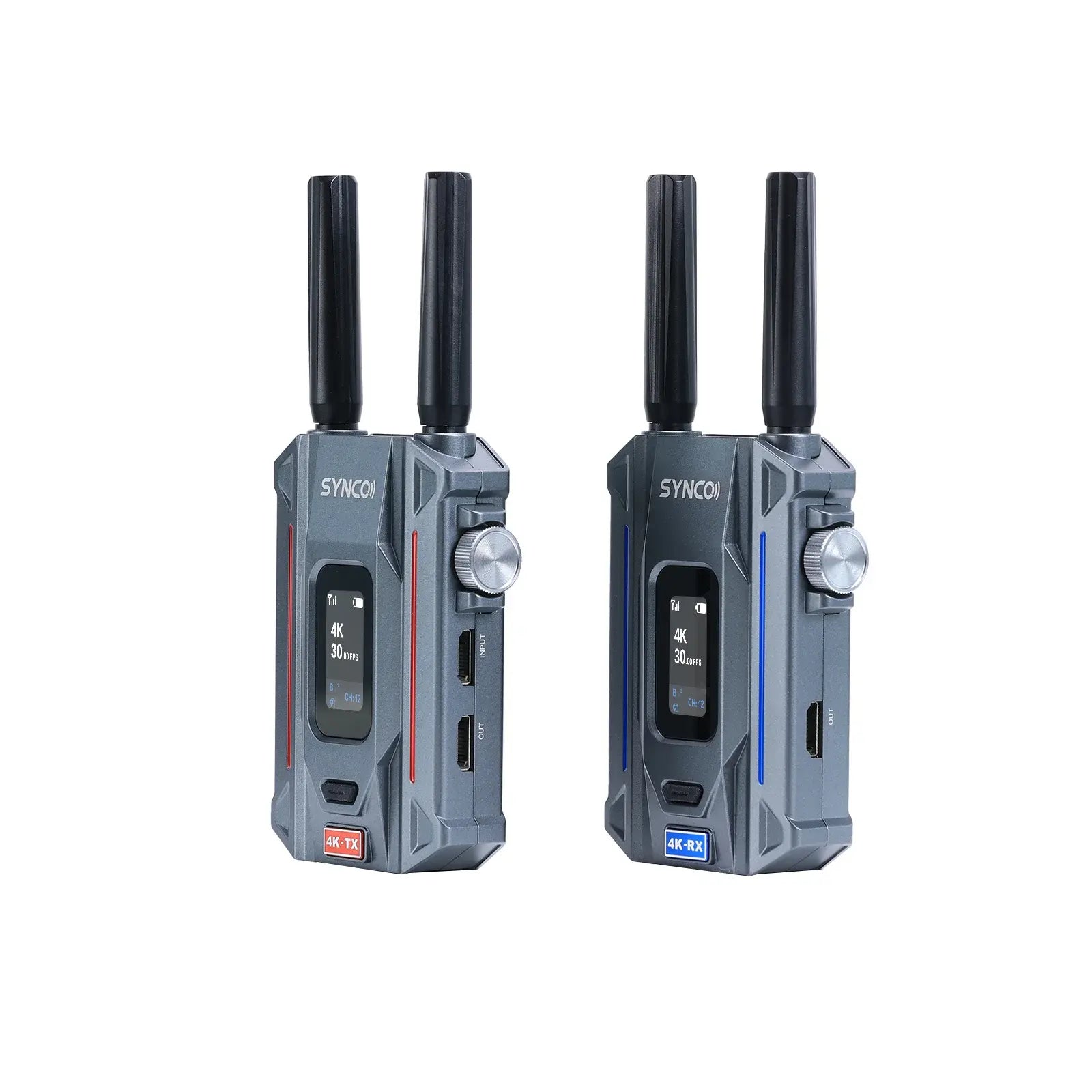

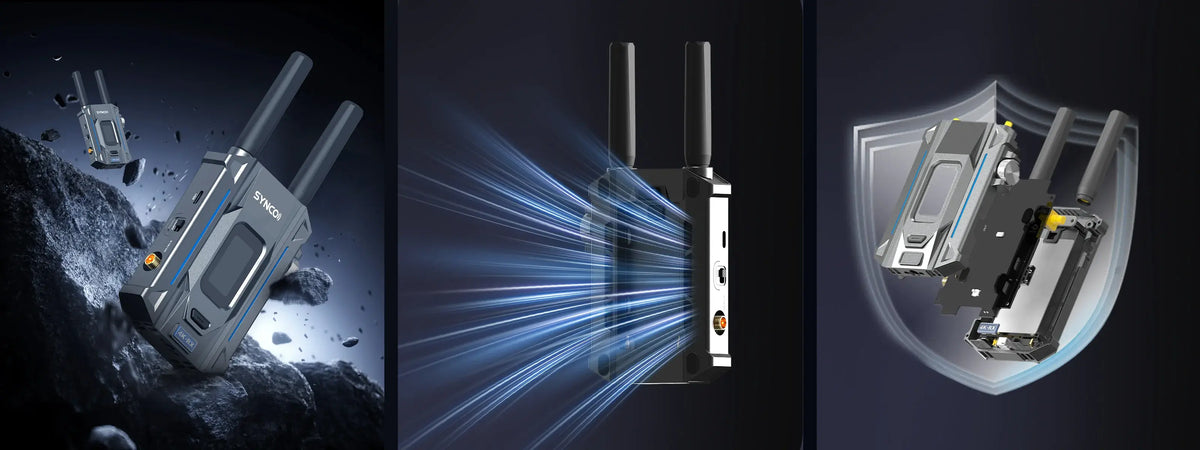

Durable Build for Demanding Productions
Both the XVision 4K video transmitter and receiver feature durable aluminum alloy housings, providing efficient heat dissipation, enhanced impact resistance, and reliable performance in demanding environments.
