SYNCO XStation Wireless Intercom Base Station for Xtalk Master, 40 Users, 1100m Range, 5 Groups, UAC Remote Communication, PGM Input, 4-Wire Compatibility, App Control
- Description
- Specifications
- What's in the Box?
- Resources
The SYNCO XStation wireless intercom base station expands the Xtalk Master to support up to 40 users with a massive 1,100m range.
By dividing the team into 5 groups, it ensures your crew hears only what matters - eliminating cross-talk and distractions for focused coordination on complex productions.
This station delivers universal integration, featuring a 4-wire interface for external intercom systems, a UAC interface for remote communication, and a PGM input for program audio monitoring. With the SYNCO Audio App, your entire setup - from group routing to audio settings - is managed from a single, centralized interface.
Built for fast-paced film production, TV broadcasting, and live events, the SYNCO XStation features a hybrid V-Mount and DC power supply, a flexible 1/4" tripod mount, and clear LED indicators to guarantee continuous uptime and effortless deployment.
| Range | 400m (LOS) |
| RF Frequency Band | 2.4GHz |
| Modulation | GFSK |
| Transmit Power | 20dBm |
| RF Protocol | Proprietary |
| Latency | < 50ms |
| Frequency Response | 150Hz~7KHz |
| Audio Sample Rate | 8KHz, 16bit |
| SNR | 65dB |
| Power Supply | V-Mount battery; DC: 6~16.8V |
| Power Consumption | 5W |
| Transmission Mode | Full-duplex |
| Operating Temperature | -15~45℃ |
This packing list is for the single XStation kit only. Go to the details section to get more.
Manuals (English available):
Free Shipping for Order > US$39.99
3-7 Day Delivery
Scale up to 40 Users: Built for Large Teams
A single XStation wireless intercom base station expands the Xtalk Master to 20 users. Two cascaded XStation units scale the system to a 40-user network, built for your largest productions.
400m to 1100m Range: Rock-Solid Connectivity
Equipped with five external antennas, each SYNCO XStation maintains a stable wireless connection with the Xtalk Master at a range of up to 400m. Two XStations can be connected with a 300 m cable to extend coverage up to 1,100 m.

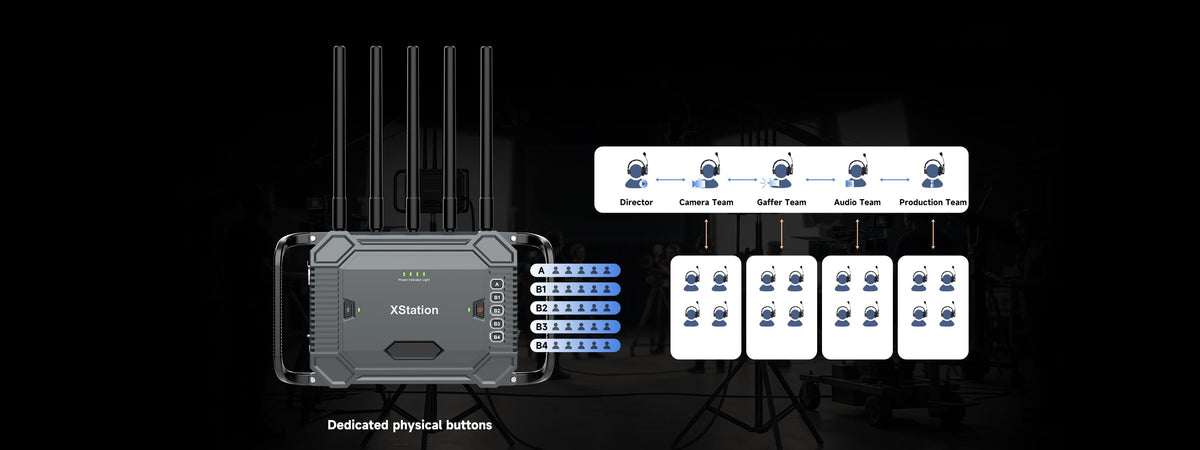

Efficient Group Management: Hear Only What You Need
The SYNCO XStation wireless intercom base station organizes Xtalk Master into one management group and four executive groups. Group leaders can communicate across all groups, while team members stay on their dedicated channels to reduce cross-talk and ensure smooth, efficient coordination.
UAC for Remote Communication: Connect Anywhere
Featuring a UAC interface for PC, tablet, and phones, the SYNCO XStation enables remote communication for the Xtalk Master. Link two XStations to separate computers, join online meetings, and keep teams connected from anywhere in the world.
PGM Input: Monitor Program Audio
Connected via XLR, the SYNCO XStation wireless intercom base station feeds program audio to Xtalk Master headsets, keeping teams aligned with live program audio during production. A dedicated physical knob offers fast and precise volume control for on-site use.

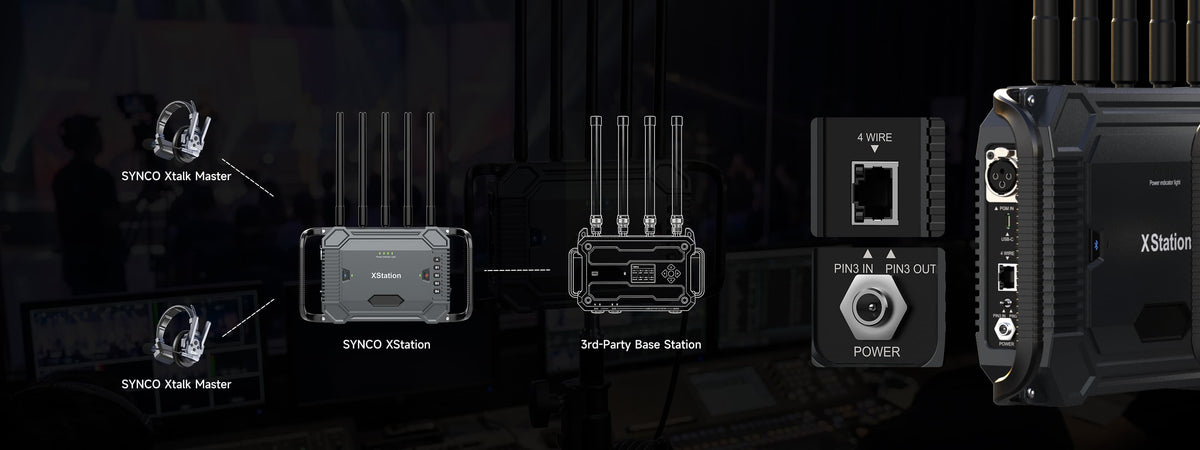

Universal 4-wire Interface: Seamless Intercom Integration
The SYNCO XStation features a 4-wire interface for integrating the Xtalk Master with other 4-wire intercom systems. A dedicated pinout toggle switch allows quick line sequence adjustment for seamless compatibility with different 4-wire standards.
Smart App Control: Centralized System Management
With the SYNCO Audio App, the XStation enables centralized control of the Xtalk Master wireless intercom system. Group settings, audio routing, volume control, and OTA firmware updates can all be managed from a single interface.
Dual Power Supply: Seamless Switching Between Battery and DC
Supporting both V-Mount battery and DC power inputs, the SYNCO wireless intercom base station features intelligent power routing. It automatically switches sources based on voltage priority to guarantee continuous uptime for the entire intercom network.
Production-Ready: Mounting Flexibility and Power Status Visibility
Designed for fast-paced productions, the XStation features a standard 1/4" screw hole for mounting on tripods and rigs, while LED indicators make it easy to check battery status at a glance.
